Stock Code: TI-PG80

TrendNet 8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch, Retail Box, 6 months Limited Warranty

Product Overview:
TRENDnet's TI-PG80 is a reliable IP30 unmanaged with hardened components rated for extreme industrial environments. It offers 8 Gigabit PoE+ ports (802.3at/802.3af) and a PoE power budget of up to 200 Watts. Redundant power inputs (power supply sold separately: TI-S24048) and a power failure alarm output trigger support zero downtime applications.

Highlights:
• 8 x Gigabit PoE+ Ethernet ports
• Up to a 200 Watt full PoE+ power budget
• 16 Gbps switching capacity
• Hardened IP30 rated metal switch
• Includes DIN-rail and wall mounts
• Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
• Redundant power inputs with overload current protection
• Alarm output triggered by power failure
• Powers supply sold separately (Model TI-S24048)

TrendNet 8-Port Hardened Industrial Gigabit

Stock Code: TI-G62

TrendNet 6-Port Hardened Industrial Gigabit DIN-Rail Switch, Retail Box, 6 months Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TrendNet 6-Port Hardened Industrial Gigabit DIN-Rail Switch, Retail Box, 6 months Limited Warranty

Product Overview:
TRENDnet's TI-G62 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit Ethernet ports, one shared SFP slot, one dedicated SFP slot, and a 12 Gbps switching capacity. DIP switches toggle between the shared Gigabit port and SFP slot and set supported throughput to either 100 Mbps or 1 Gbps. Redundant power inputs (power supply sold separately: TI-M6024) and a power failure alarm output trigger support zero downtime applications

Highlights:
• 5 x Gigabit Ethernet ports
• 1 x shared SFP slot and 1 x dedicated SFP slot
• 12 Gbps switching capacity
• Hardened IP30 rated metal switch
• Includes DIN-rail and wall mounts
• Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
• Redundant power inputs with overload current protection
• Alarm output triggered by power failure
• Power supply sold separately (model TI-M6024)

Stock Code: TI-F11SFP

TrendNet Hardened Industrial 100/1000 Base-T to SFP Media Converter, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TrendNet Hardened Industrial 100/1000 Base-T to SFP Media Converter, Retail Box, 1 year Limited Warranty

Product Overview:
TRENDnet's TI-F11SFP is a reliable IP30 rated 100/1000 Base-T to SFP media converter with hardened components rated for extreme industrial environments. Set 100 or 1000 Mbps throughput speeds, Auto Negotiation, and Link Fault Pass Through (LFP) using the front panel dip switches. Dual redundant power inputs (power supply sold separately: TI-M6024) with overload current protection support zero downtime applications.

Highlights:
• Hardened IP30 rated 100/1000 Base-T Ethernet to SFP converter
• SFP port accommodates Multi or Single Mode fiber
• Up to 80 km fiber networking distances with the TEG-MGBS80 SFP module
• Includes DIN-rail and wall mounts
• Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
• Dual redundant power inputs with overload current protection
• Powers supply sold separately (model TI-M6024)

Stock Code: 507349

Intellinet Gigabit Ethernet Single Mode Media Converter - 10/100/1000Base-T to 1000Base-LX (SC) Single-Mode, 20 km, Retail Box, 2 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Intellinet Gigabit Ethernet Single Mode Media Converter - 10/100/1000Base-T to 1000Base-LX (SC) Single-Mode, 20 km (12.4 mi), Retail Box, 2 year Limited Warranty.

Product overview:
The Intellinet Network Solutions Gigabit Ethernet Single Mode Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity.

Expands the Size of an Existing Network
Provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.

Enhances the Distance between Networking Devices
Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device.

Cabling Flexibility
Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location, and up to 14 media converters can be simultaneously installed into a 19" rack-mountable chassis (model 507356).

Stock Code: TFC-110MST

TrendNet 100Base-TX to 100Base-FX Multi Mode ST Fiber Converter, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TrendNet 100Base-TX to 100Base-FX Multi Mode ST Fiber Converter, Retail Box, 1 year Limited Warranty

Product Overview:
The TFC-110MST Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode ST-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (ST-Type).

Features:
• Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
• One 10/100Base-TX auto-negotiation RJ-45 port
• Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
• Auto MDIX for 10/100Base-TX port
• One 100Mbps fiber port with Multi-mode ST-Type Connector
• Half / Full-Duplex mode selector on Fiber port
• Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
• Wall-Mountable
• Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
• ST type multi-mode fiber port connects over distances of up to 2km
• 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
• Functions as a stand alone converter or with the TFC-1600 fiber chassis

Specifications:
• Product Code: TEG-MGBSX
• Descriptions: TrendNet SFP Multi-Mode LC Module (550m)
• Standards: IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
• Supported Frame Size: Standard Ethernet up to 1522-Byte
• Network Media: 100Base-TX: Cat. 5, EIA/TIA-568 100-ohm UTP/STP, up to 100 meters.; 100Base-FX: Multi-Mode fiber optic cable 50/125 or 62.5/125 µm, up to 2 Km.
• Wavelength: 1300nm
• Protocol: CSMA/CD
• Ports: 1 x 10/100Base-TX; 1 x 100Base-FX
• Data Transfer Rate: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex)
• Diagnostic LEDs: Power, Link/Activity, Full-Duplex, and Speed
• Power Adapter: 7.5VDC, 1.5A (7.2 watts max.)
• Temperature: Operating: 0° ~ 40° C (32° ~ 104° F)
• Storage: -25° ~ 70° C (-13° ~ 158° F)

Humidity:
• Operating: 10% ~ 90%
• Storage: 5% ~ 90% (non-condensing)

Stock Code: TFC-110MSC

TrendNet 100Base-TX to 100Base-FX Multi Mode SC Fiber Converter, Retail Box, 1 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TrendNet 100Base-TX to 100Base-FX Multi Mode SC Fiber Converter, Retail Box, 1 year Limited Warranty

Product Overview:
The TFC-110MSC Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).

Features:
• Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
• 1 x 10/100Base-TX auto-negotiation RJ-45 port
• Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
• Auto MDIX for 10/100Base-TX port
• 1 x 100Mbps fiber port with multi-mode SC-type connector
• Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
• Dip-switch for full and half duplex selection on fiber port
• Wall mountable
• Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
• SC-type multi-mode fiber port connects over distances of up to 2km (1.2 miles)
• 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
• Functions as a stand alone converter or with the TFC-1600 fiber chassis

Specifications:
• Product Code: TEG-MGBSX
• Descriptions: TrendNet SFP Multi-Mode LC Module (550m)
• Standard: IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
• Supported Frame Size: Standard Ethernet up to 1518bytes
• Network Media: 100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m: 100Base-FX: Multi-mode fiber optic cable 50/125 µm or 62.5/125 µm, up to 2km
• Protocol: CSMA/CD

Ports
• 1 x 10/100Base-TX
• 1 x 100Base-FX (SC-type)

• Dip Switch: FX: duplex mode (half/full)

Transfer Rate
• 100Mbps (half-duplex)
• 200Mbps (full-duplex)

Diagnostic LED
• Per unit: Power
• Per Port: link/activity, full-duplex/collision, speed (on fiber port)

• Power Adapter: 5V DC, 1A external power adapter
• Power Consumption: 1.8 Watts (max)
• Media: MMF
• Wavelength: 1300nm
• Pout (dBm): -19 ~ +14
• Sensitivity: -32 ~ 14
• Power: 13
• Distance: 2km

Package contents
• TFC-110MSC
• Multi-Language Quick Installation Guide
• Power Adapter (5V, 1A)

Stock Code: 506502

Intellinet Fast Ethernet Media Converter - 10/100Base-TX to 100Base-FX (SC) Multi-Mode, 2 km (1.24 mi), Data transfer rate: 100 Mbps, One 10/100Base-TX RJ45 port, maximum distance 100 m / 300 ft, RJ45 port with Auto MDI/MDI-X support and auto-negotiation, Retail Box, 2 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview:

The Intellinet Network Solutions Fast Ethernet Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before – only now it can support both copper and fiber mediums.Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19" rack-mountable chassis.

Provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device.

Stock Code: 507332

Intellinet Fast Ethernet Single Mode Media Converter - 10/100Base-TX to 100Base-FX (SC) Single-Mode, 20 km (12.4 mi), Fiber SC single-mode port connects over distances of up to 20 km (12.4 miles), Data transfer rate: 100 Mbps, 10/100Base-TX RJ45 port, maximum distance 100 m / 300 ft, Retail Box, 2 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview:

The Intellinet Fast Ethernet Single Mode Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before — only now it can support both copper and fiber mediums. Provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.

Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device. Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location, and up to 14 media converters can be simultaneously installed into a 19" rack-mountable chassis (model 507356).

Stock Code: 510530

Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter - 10/100Base-TX to 100Base-FX (SC) Single-Mode, 20 km, WDM (RX1310/TX1550), Retail Box, 2 year Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

Intellinet Fast Ethernet WDM Bi-Directional Single Mode Media Converter - 10/100Base-TX to 100Base-FX (SC) Single-Mode, 20 km (12.4 mi.), WDM (RX1310/TX1550), Retail Box, 2 year Limited Warranty.

Product Overview:

The Intellinet Fast Ethernet WDM (bi-directional wavelength division multiplexing) Media Converter utilizes a single strand of fiber to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without digging in a second fiber cable. The converter is completely transparent to the network so the network performs exactly the way it did before — only now it can support both copper and fiber mediums.

This converter provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with the installation of additional routers.Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device. Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wallmount installation. Several converters can be simultaneously installed into a 19" rack-mountable chassis.

Stock Code: TI-M6024

TrendNet 60 W Single Output Industrial DIN-Rail Power Supply, Retail Box, 6 months Limited Warranty

Click Here For More Detail

Click Here For a Quick Description

TrendNet 60 W Single Output Industrial DIN-Rail Power Supply, Retail Box, 6 months Limited Warranty

Product Overview:
TRENDnet's 60 W Single Output Industrial DIN-Rail Power Supply, model TI-M6024 (Mean Well MDR-60-24), supplies up to 60 Watts of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with an integrated DIN-rail mount and overload current protection.

Highlights
• Industrial power supply with integrated DIN-rail mount
• Provides up to 60 Watts of power (24 V, 2.5 A)
• Universal AC input
• Short circuit/overload/over voltage protection
• UL 508 approved
• 100% full load burn-in test
• Extreme -20 to 70 °C (-4 to 158 °F) operating temperature range

Stock Code: VGATDVI

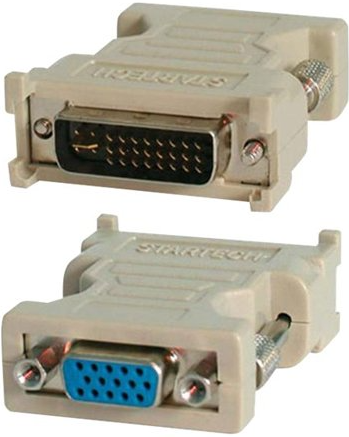

UNIQUE DVI TO D-SUB CONVERTER - A digital-to-analog active converter designed to bridge DVI-D (digital) sources with VGA (analog) monitors/projectors. Ideal for extending or mirroring displays to legacy VGA hardware without compromising resolution quality.

Click Here For More Detail

Click Here For a Quick Description

Product Overview
This converter transforms DVI-D digital signals into VGA analog output, supporting resolutions up to 1920x1200 (1080p HD). Unlike passive adapters, it actively processes digital signals for compatibility with VGA-only displays. Key features include plug-and-play installation, compact design, and compatibility with DVI-D-equipped devices like PCs, laptops, and ultrabooks.

Specifications
- Input: DVI-D male
- Output: VGA (HD15 female)
- Resolution: Up to 1920x1200 (computer) / 1920x1080 (HD)
- Cable Length: Built-in 6-inch DVI-D cable, supports VGA cables up to 100ft
- Power: Optional USB Micro-B for low-power sources (if included)
- Compatibility: DVI-D sources to VGA monitors/projectors
- Warranty: Typically 1–3 years (varies by manufacturer)
