1 to 22 of 22 items

Page 1

Stock Code: 713887

Intellinet 19 Inch Double Section 15u Wall Mount Cabinet-Flat Pack, Black, Dimensions 725 (h) x 540 (w) x 600 (d) mm, Usable depth: 385 mm, Maximum static load: 30 kg, Ideal For 19 inch Rackmount Applications, Retail Box , 1 Year Warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview:
Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. Since they ship flat-pack (unassembled)*, they save you space and money. High quality features include a 4MM toughened glass door and cold-rolled galvanized steel. The rear door access to the back of the cabinet makes cabinet and component exchange a breeze.

Features:
• Ideal for 19" rackmount applications
• Maximum static load of 30 kg
• Usable depth: 385 mm (15.16 in.)
• Cable entry via rear or top panel
• 4MM toughened glass door
• Rear door for easy access to back of cabinet
• Reversible Front door
• Cold-rolled, galvanized SPCC steel with up to 1.5 mm thickness
• Ships Flat packed

Specifications
• Product Code: 713887
• Description: Intellinet 19" Double Section Wall mount Cabinet
• Height: 15U
• Colour: Black RAL7021
• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

Dimensions
• 725 (h) x 540 (w) x 600 (d) mm
• 28.54 (h) x 21.26 (w) x 23.62 (d) in.
• Usable depth: 385 mm (15.16 in.)
• Maximum static load: 30 kg (66 lbs.)

Package Contents
• 2 Rail frames
• Top, Bottom, Front, Back & Side Panels
• Installation hardware including 20x M6 Sets and 4x Keys

Stock Code: KDCAB6001

NetiX / UniQue 19" Floor Standing Cabinet-600x600x2000mm-42U,with 2 fans, Lockable Smoky Grey Glass Door , 2 pcs of side doors, 4xjacking feet ,4xpcs of castors, 40 pcs of cage and nuts)-Black

Click Here For More Detail

Click Here For a Quick Description

NetiX / UniQue 19" Floor Standing Cabinet-600x600x2000mm-42U,with 2 fans, Lockable Smoky Grey Glass Door , 2 pcs of side doors, 4xjacking feet ,4xpcs of castors, 40 pcs of cage and nuts)-Black

Features
·The door is made of toughen glass
·The whole of cabinets could be disconnected and installed easily
·The height of the accessories inside can be adjusted
·The cabinet is supported by four wheels and bolts and the height can be adjusted

Specifications
Demontable Design
600x600x2000mm (WxDxH)
SPCC Steel
Max. load: 500kg.

Certification
ANSI / EIA RS-310-D, IEC297-2

Stock Code: 712019

Click Here For More Detail

Click Here For a Quick Description

Intellinet 19 Inch Double Section 15u Wall Mount Cabinet- Assembled, Colour Black, 770 (h) x 600 (w) x 550 (d) mm, Usable depth: 425 mm, Maximum Static Load of 30 kg, Ideal For 19" Rackmount Applications, Retail Box , 1 Year Warranty

Product Overview:
Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. The tempered-glass door, easily removable side panels and cold-rolled galvanized steel are just some of the top quality workmanship and materials that are standard. These cabinets ship completely assembled for a quick and easy installation.

Features
• Ideal For 19" Rackmount Applications
• Maximum Static Load Of 30 Kg
• Usable Depth: 425mm
• Tempered-Glass Door Can Be Opened More Than 180°
• Cable Entry Via Top Panel
• Rear Door For Easy Access To Back Of Cabinet
• Cold-Rolled, Galvanized SPCC Steel With Up To 1.2 Mm Thickness
• Reversible Front Door
• Easily Removable Side Panels
• Ships assembled

Specifications
• Product Code: 712019
• Description: Intellinet 19" Double Section Wallmount Cabinet

• Height: 15U
• Color: Black RAL9005
• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

Dimensions
• 770 (h) x 600 (w) x 550 (d) mm
• 30.3 (h) x 23.6 (w) x 21.7 (d) in.

Package Contents
• Double section wall mount
• Installation hardware including tool, 20x M6 Sets and 6x Keys

Stock Code: 713849

Click Here For More Detail

Click Here For a Quick Description

Intellinet 19 Inch Double Section 9u Wall Mount Cabinet- Flat Pack, Black, Dimensions 460 (h) x 540 (w) x 600 (d) mm, Usable depth: 385 mm Maximum static load: 30 kg, Ideal For 19 inch Rackmount Applications, Retail Box , 1 Year Warranty

Product Overview:
Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. Since they ship flat-pack (unassembled)*, they save you space and money. High quality features include a 4MM toughened glass door and cold-rolled galvanized steel. The rear door access to the back of the cabinet makes cabinet and component exchange a breeze.

Features:

• Ideal For 19" Rackmount Applications
• Dimensions 327 (h) x 540 (w) x 450 (d) mm
• Usable depth: 235 mm
• Maximum Static Load Of 30 Kg
• Usable Depth: 385 Mm
• Cable Entry Via Rear Or Top Panel
• 4mm Toughened Glass Door
• Rear Door For Easy Access To Back Of Cabinet
• Cold-Rolled, Galvanized SPCC Steel With Up To 1.5 Mm Thickness
• Ships Flat Packed

Specifications
• Product Code: 712019
• Description: Intellinet 19" Double Section Wallmount Cabinet

• Height: 9U
• Color: Black RAL7021
• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

Dimensions
• 460 (h) x 540 (w) x 600 (d) mm

• Dimensions 327 (h) x 540 (w) x 450 (d) mm
• Usable depth: 235 mm
• Maximum Static Load Of 30 Kg

Package Contents
• 2 Rail frames
• Top, Bottom, Front, Back & Side Panels
• Installation hardware including 10x M6 Sets and 4x Keys

Stock Code: ZA-CAB15U

NetiX 19" 15U 600x600 Fixed Wall Mount Server Cabinet is a sturdy and space-saving option for organizing your network equipment. It comes in a retail box and is easy to install on the wall. Designed for reliability, it keeps your devices secure and includes a 1-year warranty.

Click Here For More Detail

Click Here For a Quick Description

NetiX 19" 15U 600X600 Fixed Wall Mount Server Cabinet, Retail Box , 1 year warranty

Product Overview

The cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. The cabinet's walls are made of cold-rolled steel sheet, while the front doors are made of tempered glass with the possibility of opening to the left or right side.

NetiX 19-Inch 15U 600X600 Fixed Wall Mount Server Cabinet

Specifications

•Product code: ZA-CAB15U

•Description: NetiX 19" 15U 600X600 Fixed Wall Mount Server Cabinet

•Standard 19'' mounting, welded frame, reliable design

•The frame structure is prepared for self-assembly, thus it is easy to move and transport, reducing shipping costs

•Standing/Wall Mounting

•Easy installation (patent)

•Removable side panels

•Holes for cable entry on both the top cover and the bottom panel

•Tempered glass entrance door, rotation angle over 180 degrees

Stock Code: ZA-CAB15U-600S

Netix 15U Wall Mount Server Cabinet - 15U Wall Mount Design, Durable Steel Construction, 600mm x 600mm, Tempered Glass Front Door With Key, Ventilated Panels For Optimal Airflow And Cooling, Cable Entry Ports, Removable Side Panels, Compatible With Standard 19" Equipment, Retail Box, 3 Months Warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview

Netix CAB15U 600 x 600 Server Cabinet is a durable 15U wall-mount rack designed to save space while securely housing network and server equipment. It features a lockable tempered glass door, ventilated panels, and removable side panels for easy access and efficient cooling. With top and bottom cable entry ports, it ensures organized cable management and supports standard 19” devices.

Features

•15U Wall Mount Design – saves floor space while maintaining easy access
•Durable Steel Construction – robust frame supports heavy equipment
•600mm (W) x 600mm (D) – spacious for switches, servers & DVRs
•Tempered Glass Front Door – with key lock for added security
•Ventilated Panels – ensures optimal airflow and cooling
•Cable Entry Ports – top & bottom for organized management
•Removable Side Panels – simplify installation and maintenance
•Compatible with Standard 19” Equipment

Stock Code: S/059923

Lambda 19 Inch Swingframe Wallmount Cabinet - 12U, Assembled, Black, 400 mm + 200 mm depth - Usable depth: 300 mm, Tempered Glass Front Door, Removable Side Panel, L-shaped Mounting Profile, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview:

Lambda 19 Inch Swingframe Wallmount Cabinets offer you a flexible solution for your network installations. Since they ship flat-pack (unassembled)*, they save you space and money. High quality features include a 4MM toughened glass door and cold-rolled galvanized steel. The rear access to the back of the cabinet makes cabinet and component exchange a breeze.

Features:

• Ideal For 19" Rackmount Applications

• Dimensions 327 (h) x 540 (w) x 450 (d) mm

• Usable depth: 300 mm

• Maximum Static Load Of 30 Kg

• Usable Depth: 385 Mm

• Cable Entry Via Rear Or Top Panel

• 4mm Toughened Glass Door

• Tempered Glass Front Door

• Removable Side Panel

• L-shaped Mounting Profile

Specifications

• Product Code: S/059923

• Description: Lambda 19 Inch Swingframe Wallmount Cabinet

• Height: 12U

• Color: Black RAL7021

• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

Dimensions

• 580 (h) x 570 (w) x 600 (d) mm

• Dimensions 327 (h) x 540 (w) x 450 (d) mm

• Usable depth: 300 mm

• Maximum Static Load Of 30 Kg

Package Contents

• 2 Rail frames

• Top, Bottom, Front & Side Panels

• Installation hardware including 10x M6 Sets and 4x Keys

Stock Code: 713825

Intellinet 19 Inch Double Section Wallmount Cabinet - 6U, Flatpack, Black, 600 mm depth - Usable depth: 385 mm, Tempered Glass Front Door, Removable Side Panel, L-shaped Mounting Profile, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Intellinet 19" Double Section Wallmount Cabinet - 6U, Flatpack, Black, 600 mm (23.62") depth, Retail Box , 1 year warranty on case

Product Overview:
Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. Since they ship flat-pack (unassembled)*, they save you space and money. High quality features include a 4MM toughened glass door and a cold-rolled galvanized steel. The rear door access to the back of the cabinet makes cabinet and component exchange a breeze.

*Completely assembled versions are available in certain countries.

Features:
• Ideal for 19" rackmount applications
• Cable entry via rear or top panel
• 4MM toughened glass door
• Rear door for easy access to back of cabinet
• Reversible Front door
• Cold-rolled, galvanized SPCC steel with up to 1.5 mm thickness
• Ships Flatpacked

Specifications
• Product Code: 713825
• Description: Intellinet 19" Double Section Wallmount Cabinet

General
• 19"
• Height: 6U
• Color: Black RAL7021
• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

Dimensions
• 327 (h) x 540 (w) x 600 (d) mm
• 12.87 (h) x 21.26 (w) x 23.62 (d) in

Package Contents
• 2 Rail frames
• Top, Bottom, Front, Back & Side Panels
• Installation hardware including 10x M6 Sets and 4x Keys

Stock Code: WB-SF15600/AT

Netix Wall Box Swing 15Ux400x200MM , Retail Box, No Warranty

Click Here For More Detail

Click Here For a Quick Description

Netix Wall Box Swing 15Ux400x200MM , Retail Box, No Warranty

Product Overview

Netix Wall Boxes are manufactured to high-quality specifications to host industry standard EIA-310 Hardware.They are manufactured to IQNET ISO9001:2000 Certifications. All cabinets are engineered for aesthetics, accessibility, security, manageability and above all THERMAL performance.

Features

• Reinforced tempered front glass

• 2 removable side panels with key locks

• Top open brackets for cable and wire access

• Fits Standard 19" rack-mount equipment

• Total usable space of 16" front to back

• Air vents on both front and side door

• Fan included for good heat rejection

Specifications

• Color: Black

• Material: Steel, surface is SPCC cold-rolled steel with 5mm tempered glass

• Thickness of pillar: 2mm

• Thickness of armored glass: 5mm

Stock Code: 713740

Click Here For More Detail

Click Here For a Quick Description

Intellinet 19 Inch Double Section 6u Wall Mount Cabinet-Flat Pack, Black, Dimensions 327 (h) x 540 (w) x 450 (d) mm, Usable depth: 235 mm, Maximum static load: 30 kg, Ideal For 19 inch Rackmount Applications, Retail Box , 1 Year Warranty

Product Overview:
The Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. With heights from 6 to 20 units in black (RAL9005) or gray (RAL7035), we offer you a solution for every need. The removable side panels, the lockable tempered glass-door that can be opened more than 180° and the optional double section make cabling and component exchange particularly easy.

Features
• Ideal For 19" Rackmount Applications
• Dimensions 327 (h) x 540 (w) x 450 (d) mm
• Usable Depth: 235 mm
• Maximum Static Load Of 30 Kg
• Cable Entry Via Rear Or Top Panel
• 4mm Toughened Glass Door
• Rear Door For Easy Access To Back Of Cabinet
• Reversible Front Door
• Cold-Rolled, Galvanized SPCC Steel With Up To 1.5 Mm Thickness
• Ships Flat Packed

Specifications
• Product Code: 713740
• Description: Intellinet 19" Double Section Wallmount Cabinet

• Height: 6U
• Color: Black RAL7021
• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

Dimensions
• 327 (h) x 540 (w) x 450 (d) mm
• Usable Depth: 235 mm

• Maximum Static Load Of 30 Kg

Package Contents
• 2 Rail frames
• Top, Bottom, Front, Back & Side Panels
• Installation hardware including 10x M6 Sets and 4x Keys

Stock Code: ZA-CAB9U-600S

Netix 19 Inch 9U Swing Server Cabinet

Click Here For More Detail

Click Here For a Quick Description

Product Overview

The Netix 19 Inch 9U Swing Server Cabinet is a versatile wall-mount enclosure designed for efficient server and networking equipment management in limited spaces. It features a swing-out door for easy access, sturdy steel construction, and a depth of 600x450mm, supporting up to 60kg. Ideal for intermediate-sized networks, it offers secure, organized housing with compatibility for various mounting trays. This cabinet facilitates airflow and maintenance while maximizing space utilization

Specifications

•Manufactured to International standards
•Material: Seamless steel board
•Good ventllation and heat dispersing
•User can add cable fixtures as required
•Powder coated to protect against rust, oxidisation, scratches and lacquer peeling
•Framework: High-strength steel with a 60kg weight capacity
•Cost-effective solution for smaller installations where space is limited
•9U Dimensions WxHxD: 600 x 500 x 450

Stock Code: S/059922

Lambda 19 Inch Swingframe Wallmount Cabinet - 9U, Assemlbled, Black, 400 mm + 200 mm depth - Usable depth: 300 mm, Tempered Glass Front Door, Removable Side Panel, L-shaped Mounting Profile, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Lambda 19 Inch Swingframe Wallmount Cabinet - 9U, Assembled, Black, 400 mm + 200 mm depth - Usable depth: 300 mm, Tempered Glass Front Door, Removable Side Panel, L-shaped Mounting Profile, Retail Box , 1 year warranty

Product Overview:

Features:

• Ideal For 19" Rackmount Applications

• Dimensions 327 (h) x 540 (w) x 450 (d) mm

• Usable depth: 300 mm

• Maximum Static Load Of 30 Kg

• Usable Depth: 385 Mm

• Cable Entry Via Rear Or Top Panel

• 4mm Toughened Glass Door

• Tempered Glass Front Door

• Removable Side Panel

• L-shaped Mounting Profile

Specifications

• Product Code: S/059922

• Description: Lambda 19 Inch Swingframe Wallmount Cabinet

• Height: 9U

• Color: Black RAL7021

• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

Dimensions

• 580 (h) x 570 (w) x 600 (d) mm

• Dimensions 327 (h) x 540 (w) x 450 (d) mm

• Usable depth: 300 mm

• Maximum Static Load Of 30 Kg

Package Contents

• 2 Rail frames

• Top, Bottom, Front & Side Panels

• Installation hardware including 10x M6 Sets and 4x Keys

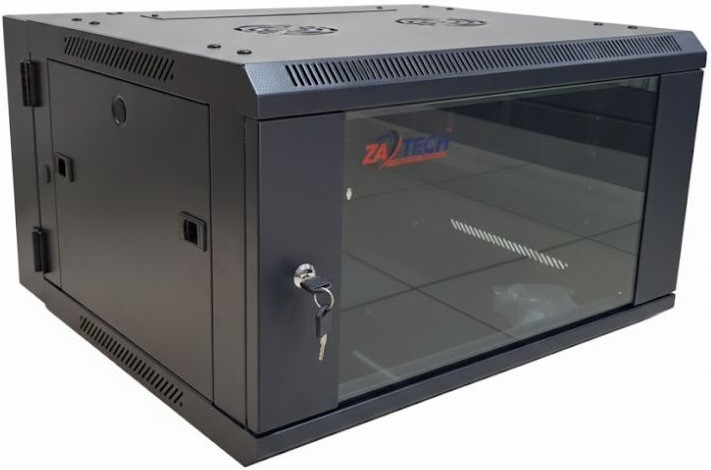

Stock Code: ZA-CAB6U-600S

Netix CAB6U Wall Mount Cabinet - 6U Wall Mount Design Compact And Space Saving, Lockable Front And Rear Door, Durable Steel Construction, Ventilation Panels, Efficient Airflow To Prevent Device Overheating, Removable Side Panels, Cable Management, Organized Routing For Path Cords And Power Cables, Retail Box, 3 Months Warranty

Click Here For More Detail

Click Here For a Quick Description

Product Overview

Netix 6U Swing Server Cabinet is a durable and secure solution for mounting network and server equipment in offices, shops, and IT rooms. Designed with a 500mm depth plus an additional 100mm swing back section, it provides easy access to cables and devices, making installations and maintenance simpler and faster.

Features

•6U Wall Mount Design – saves floor space while maintaining easy access
•Durable Steel Construction – robust frame supports heavy equipment
•500 mm + 100 mm – spacious for switches, servers & DVRs
•Tempered Glass Front Door – with key lock for added security
•Ventilated Panels – ensures optimal airflow and cooling
•Cable Entry Ports – top & bottom for organized management
•Removable Side Panels – simplify installation and maintenance

Stock Code: S/059921

Lambda 19 Inch Swingframe Wallmount Cabinet - 6U, Assembled, Black, 400 mm + 200 mm depth - Usable depth: 300 mm, Tempered Glass Front Door, Removable Side Panel, L-shaped Mounting Profile, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Description

Features:

• Welded frame, stable structure with precise craftsmanship.

• Single section, compatible with 19” standard equipments.

• Tempered glass front door

• Removable side panel, easy to install and maintain (lock optional)

• Cable entry on the top cover and bottom panel with knock-out plate.

• L-shaped mounting profile, easy to adjust on the mounting rail.

• Fan cut-out on the top cover, easy to install fan.

• Installing back panel, easy to fix on the wall.

• Various accessories optional.

What's in the box

• 1x Wall Box 6u 500mm 19"+ 2 Fans

Stock Code: S/060067

Lambda 19 Inch Swingframe Wallmount Cabinet - 4U, Assembled, Black, 400 mm + 200 mm depth - Usable depth: 300 mm, Tempered Glass Front Door, Removable Side Panel, L-shaped Mounting Profile, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

Description

Features:

• Stock Code: S/060067

• Description: Lambda 19 Inch Swingframe Wallmount Cabinet

• Welded frame, stable structure with precise craftsmanship.

• Single section, compatible with 19” standard equipments.

• Tempered glass front door

• Removable side panel, easy to install and maintain (lock optional)

• Cable entry on the top cover and bottom panel with knock-out plate.

• L-shaped mounting profile, easy to adjust on the mounting rail.

• Fan cut-out on the top cover, easy to install fan.

• Installing back panel, easy to fix on the wall.

• Various accessories optional.

What's in the box

• 1x Wall Box 4u 500mm 19"+ 2 Fans

Stock Code: ZA-CAB9U

NetiX 19" 9U 600X450 Fixed Wall Mount Server Cabinet, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

NetiX 19" 9U 600X450 Fixed Wall Mount Server Cabinet, Retail Box , 1 year warranty

Product Overview

The NetiX 19" 9U 600X450 Fixed Wall Mount Server Cabinet is an ideal solution for intermediate sized networks offering versatility and convenience by saving valuable space within any office suite. Once assembled, the case can be stripped down to the basic framework in a matter of seconds via the slide and connect panels.

Specifications

•Product code: ZA-CAB9U

•Description: NetiX 19" 9U 600X450 Fixed Wall Mount Server Cabinet

•Assembly: Supplied Flat Packed

•Fans: Not Included

•Material: Cold Rolled Steel; Powder Coated

•Mounting: Fixed Wall-Mount

•Shelves: Not Included

•Size: 9U 450mm Deep

•Tray Compatibility: CAB-T300; CAB-T275

•Weight Capacity: 60kg

•Dimensions: 500 x 600 x 450mm (H x W x D)

•Weight: 24.10kg

•Volumetric Weight: 15.60kg

Stock Code: ZA-CAB6U

NetiX 19" 6U 600X450 Fixed Wall Mount Server Cabinet, Retail Box , 1 year warranty

Click Here For More Detail

Click Here For a Quick Description

NetiX 19" 6U 600X450 Fixed Wall Mount Server Cabinet, Retail Box , 1 year warranty

Product Overview

The NetiX 19" 6U 600X450 Fixed Wall Mount is an ideal solution for intermediate sized networks offering versatility and convenience by saving valuable space within any office suite. Once assembled, the case can be stripped down to the basic framework in a matter of seconds via the slide and connect panels.

Specifications

•Product code: ZA-CAB6U

•Description: NetiX 19" 6U 600X450 Fixed Wall Mount Server Cabinet

•19’’ standard installation, welded frame, reliable structure

•Frame structure intended for self-assembly, easy handling, and transportation, to maximize save shipping cost

•Standing or wall mounting installation

•Easy mounting installation (patent)

•Removable side panels

•Holes for entering cable on both of top cover and bottom panel

•Toughened glass front door, turning angle is over 180 degrees

1 to 22 of 22 items

Page 1

Photographed products shown above are for illustrative purposes only. www.esquireshop.com © 2021
