TRENDnet TEW-740APO 10 dBi Wireless N300 Outdoor PoE Access Point, Retail Box, 1 year Limited Warranty

Product Overview:
TRENDnet’s 10 dBi Outdoor PoE Access Point, model TEW-740APBO, provides wireless N300 point-to-point connectivity. A variety of installation scenarios are facilitated with Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes. The IPX6 rated housing comes with wall and pole mounting hardware.

360° Coverage Extension
Stronger signal increases wireless coverage to hard-to-reach areas. Increase the strength of outgoing signals and sensitivity for signal reception.

Cost Effective
The high-gain antenna saves wiring costs for building corporate wireless infrastructures by driving stronger signals to all corners.

Easy to Install (No driver required)
Just unscrew your current antenna, and attach the high-gain antenna in its place.

Intellinet Dual Band Ceiling Mount Antenna – Frequency Bands 2.4 GHz / 5.0 GHz dual-band support, Antenna Gain 4 dBi (max), 3 dBi at 2.4 GHz, Omni-directional antenna type, Vertical polarization, Connector RP-SMA plug, Power Handling 1 Watt, Impedance 50 Ohms, Cable Length approx. 30 cm (1 ft), Dimensions 125 mm width x 130 mm depth, Weight 200 grams, Environmental Rating IP65 ), Warranty 2 years limited,Retail box

Product overview

This ceiling mount antenna offers 360-degree beam width for uniform wireless coverage, making it ideal for office or conference room environments. Its low-profile design blends well with indoor ceilings or solid surface mounts. The dual-band feature supports both common wireless bands, eliminating the need for multiple antennas for different frequencies. It is compatible with wireless access points and routers using RP-SMA connectors. The IP65 rating ensures durability against dust and water exposure indoors and in protected outdoor areas.

Specifications

Product Code : 524025

Product Description : Intellinet Dual Band Ceiling Mount Antenna

Frequency Bands: 2.4 GHz / 5.0 GHz dual-band support

Antenna Gain: 4 dBi (maximum), 3 dBi at 2.4 GHz

Antenna Type: Omni-directional

Polarization: Vertical polarization

Connector Type: RP-SMA plug

Power Handling: 1 Watt

Impedance: 50 Ohms

Cable Length: Approximately 30 cm (1 ft.)

Dimensions: Width 125 mm, Depth 130 mm

Weight: 200 grams

Environmental Rating: IP65 (dust tight and protected against water jets)

Warranty: 2 years limited

Packaging: Retail box

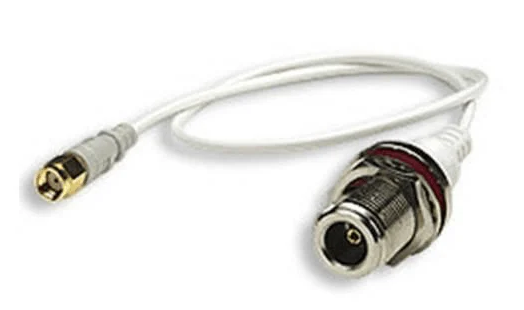

Intellinet White Antenna N type Cable Adapter - N-type Jack to RP-SMA Plug Jumper Cable, 1 ft (0.3m) Connects CFD200, CFD400 and CFD600 cable to regular WLAN Access Points and Routers , Retail Box, 2 year Limited Warranty

Product Overview
This jumper cable adapter provides an essential connection interface for integrating Intellinet CFD series antenna cables with most WLAN access points and routers having RP-SMA connectors. It balances flexibility, signal integrity, and ruggedness in a compact length suitable for neat installations

Specifications
- Product Code : 500425
- Product Description : Intellinet White Antenna N type Cable Adapter
- Connectors: N-type jack to RP-SMA plug
- Cable Length: 1 ft (0.3 meters)
- Cable Color: White (specific to this model)
- Cable Type: Typically uses low-loss coaxial cable suitable for antenna connections
- Impedance: 50 Ohms
- Compatible With: Connects CFD200, CFD400, and CFD600 antenna cables to standard WLAN access points and routers
- Jacket Material: PVC
- Inner shielding: Aluminum
- Outer shield: Tin-plated copper
- Minimum Bend Radius: 12.7 mm (0.5 in.)
- Operating Temperature Range: -40 to +85 °C (-40 to +185 °F)
- Frequency Range: Suitable for typical WLAN frequencies (exact frequency not specified)
- Packaging: Retail box
- Warranty: 2 year limited warranty

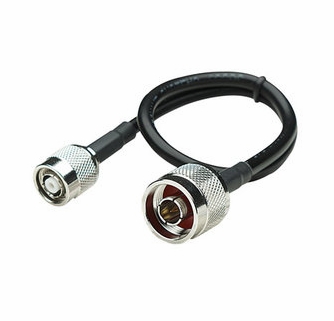

Intellinet Black Antenna N Type Cable Adapter – N-type plug to RP-TNC plug (Reverse Polarity TNC), Cable Length 1 ft. (0.3 meters), Cable Color Black, Cable Type LMR-195 or low-loss coaxial cable, Impedance 50 Ohms, Frequency Range up to 6 GHz, Jacket Material typically PVC, Suitable for antenna extension or adapter use in wireless communication devices, Retail box, 2-year limited warranty

Product Overview

This adapter cable ensures robust, low-loss connectivity between N-type and RP-TNC connectors, commonly used in wireless networking, telecommunications, and outdoor antenna installations where reliable connections and RF signal integrity are paramount.

Specifications

- Product Code : 503716

- Product Description : Intellinet Black Antenna N type Cable Adapter

- Connector Type: N-type plug to RP-TNC plug (Reverse Polarity TNC)

- Cable Length: 1 ft. (0.3 meters)

- Cable Color: Black

- Cable Type: LMR-195 or low-loss coaxial cable

- Impedance: 50 Ohms

- Frequency Range: up to 6 GHz

- Maximum Power Handling: typical for this cable and connectors (not explicitly stated but suitable for RF applications)

- Jacket Material: typically PVC (standard for jumper cables)

- Application: antenna extension or adapter cable for wireless communication devices

- Packaging: Retail box

- Warranty: 2-year limited warranty

Intellinet Antenna SMA Plug to Reverse SMA Plug Cable – Connector 1: SMA plug (male), Connector 2: Reverse SMA plug (RP-SMA female), Cable Type RG-58/U coaxial, Impedance 50 Ohms (+/- 3 Ohms), Center Conductor Strand bare copper wire 0.8 mm O.D. (+/- 0.2 mm), Insulation Solid polyethylene 2.9 mm O.D. (+/- 0.1 mm), Shield Bare copper wire 3.12 mm O.D. (+/- 0.008 mm), Jacket Material PVC (Tellon) 5 mm O.D. (+/- 0.01 mm), Length 10 ft (3.0 m), Signal Loss 0.21 dB per ft, Packaging Retail box, Warranty 2-year limited

Product Overview

The Intellinet 790406 antenna cable is ideal for extending antenna reach where one device requires an SMA male connector and the other a reverse SMA female connector. It maintains high signal integrity due to quality materials and manufacturing standards. Perfect for networking, wireless, or radio applications needing a robust, reliable coaxial cable solution.

Specifications

- Product Code : 790406

- Product Description : Intellinet Antenna SMA plug to Reverse SMA plug Cable

- Connector 1: SMA plug (SMA male)

- Connector 2: Reverse SMA plug (RP-SMA plug, Reverse SMA female)

- Cable Type: RG-58/U coaxial

- Impedance: 50 Ohms (+/- 3 Ohms)

- Center Conductor: Strand bare copper wire, 0.8 mm O.D. (+/- 0.2 mm)

- Insulation: Solid polyethylene, 2.9 mm O.D. (+/- 0.1 mm)

- Shield: Bare copper wire, 3.12 mm O.D. (+/- 0.008 mm)

- Jacket Material: PVC (Tellon), 5 mm O.D. (+/- 0.01 mm)

- Length: 10 ft. (3.0 m)

- Signal Loss: 0.21 dB per ft.

- Warranty: 2-year limited

- Packaging: Retail box
